WB48
activeActiveEthernetmicroSDDifferentialStandaloneFPP
Overview
- features
- OLED display, Test button, Reverse polarity protection, Voltage sensors
- price
- 159
Inputs
- physical
- Ethernet
- Yes
- standalone
- Yes
Outputs
- count
- 12
- connector
- RJ45 (8P8C)
- differential
- Yes
- pixels
- max per output
- 1400
Power
- voltage
- min
- 5
- max
- 5
Data & Protocol
- storage
- type
- microSD
Software
- firmware
- FPP
Related Products
- Replaces
Notes

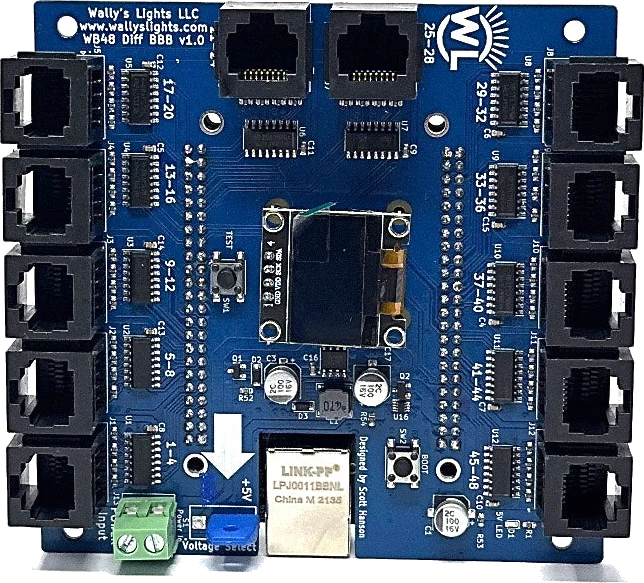

BeagleBone Black (Rev C) based FPP controller; designed with Scott Hanson. 12 differential RJ45 ports drive up to 48 remote ports via Universal Differential Receivers (5 V or 12 V pixels at the receiver).
Technical Notes
- Up to 800 pixels per port at 40 fps, 1400 per port at 20 fps
