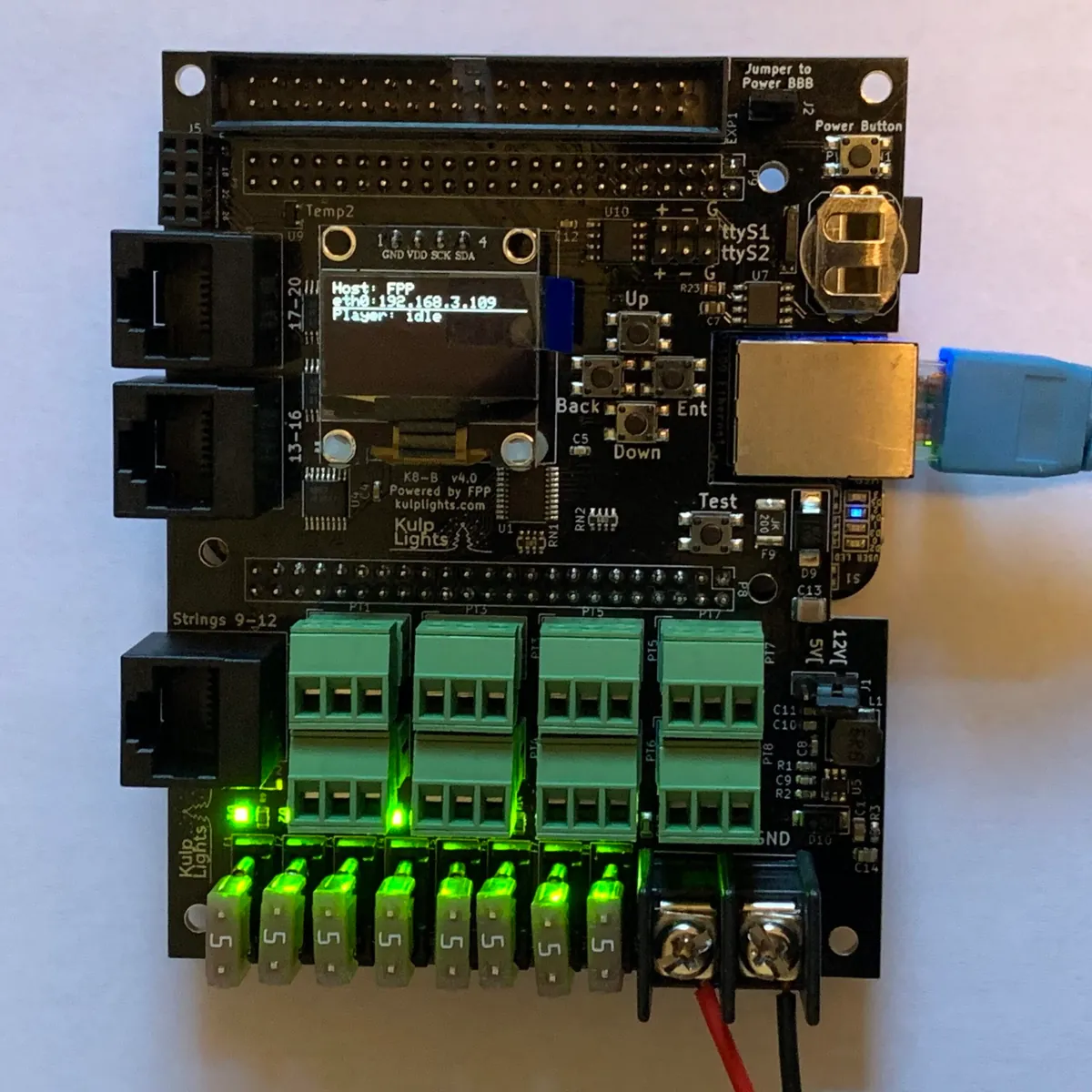

K8-B
activeActiveDMXEthernetmicroSDDifferentialStandaloneFPP
Overview
- features
- 8 fused local outputs, Differential receiver outputs, F16v3-compatible expansion board support
- price
- 80
Inputs
- physical
- Ethernet
- Yes
- standalone
- Yes
- requires host
- BeagleBone Black
Outputs
- count
- 36
- connector
- Phoenix Screw/RJ45
- driver
- buffered
- Yes
- differential
- Yes
- clocked
- No
- auxiliary
- DMX512
- 2
Power
- voltage
- max
- 12
- current
- max
- 30
Data & Protocol
- storage
- type
- microSD
Software
- firmware
- FPP
Related Products
- Variants
Notes
BeagleBone Black cape running FPP (Ethernet/storage via the BBB). 8 fused local ports drive 800 pixels each at 40FPS (1500 at 20FPS); 3 RJ45 ports add 12 strings via differential receivers, plus 16 more via F16v3-compatible expansion boards. Two UARTs drive DMX/Renard/LOR.
Technical Notes
- 8 local ports drive 800 pixels each at 40FPS (1500 at 20FPS)
- 12 channels require differential receivers
- 16 additional strings via F16v3-compatible expansion boards
